Element Fields

Author: An Do 1988 views

Each Basic Element will contain multiple Fields and the possible fields are listed under the Design tab.

It helps you control the color, font, size of the text, and spacing between elements. In addition, the Design tab can also help position and layout elements in devices with different screen sizes. There are many interesting features in the Design tab and I will introduce them in this article.

1. Design Tab

1.1. Alignment

The horizontal alignment of an element, it can be left, right, or centered (left alignment is the default).

1.2. Typography

Typography Customize

  • Font family: Apply a font for the texts. The EComposer has support 2 types Uploaded font and Google font
    • Uploaded font: This allows you to upload a new custom font (or your brand font, for example).
    • Google Fonts: These fonts are free to use with no copyright issues.

Note: Font file formats you can upload: .ttf / .otf / .woff

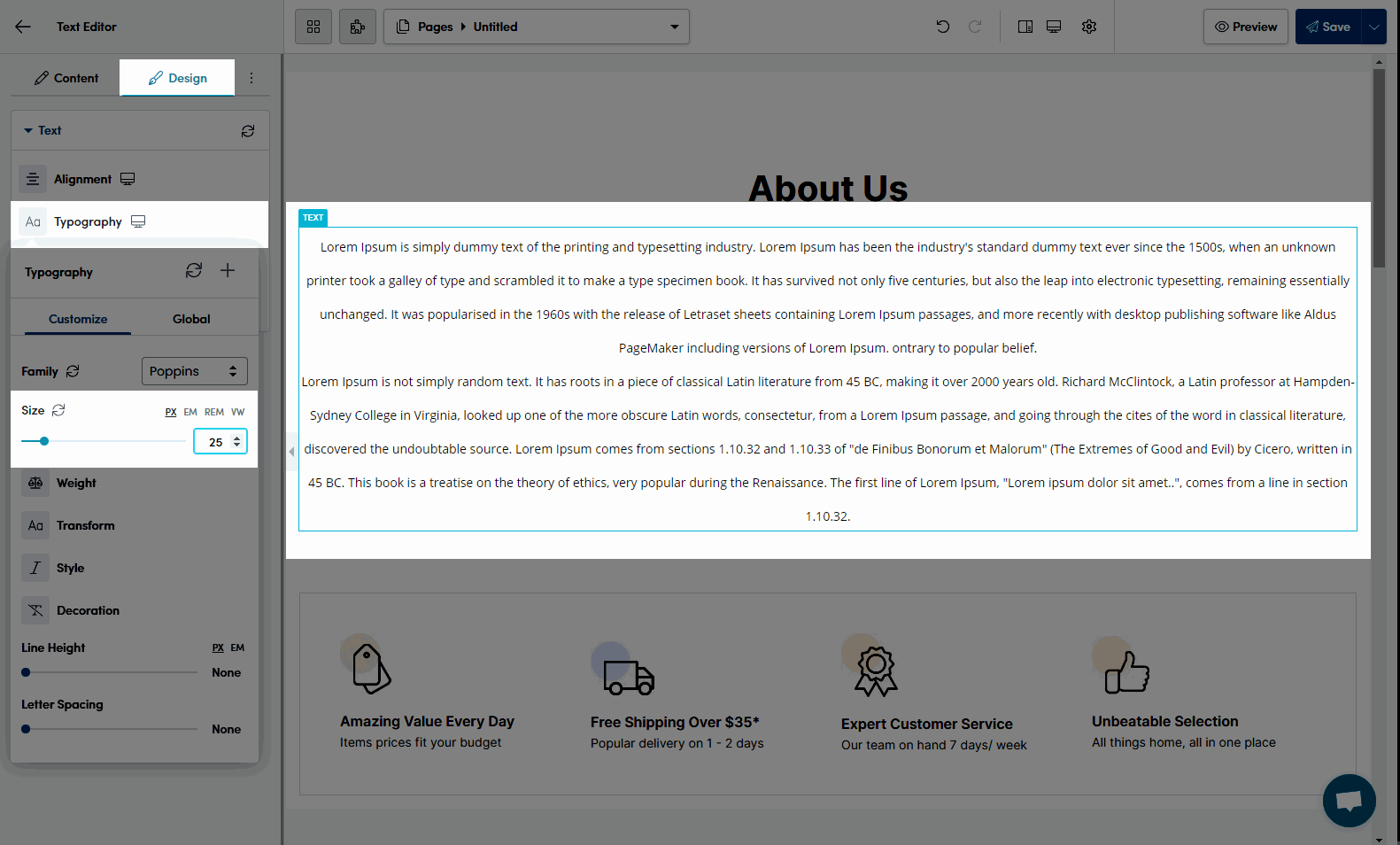

  • Size: Sets the size of texts. Font size units PX, EM, REM, VW.
    • PX is an absolute unit. The value assigned is fixed irrespective of the user’s device screen.
    • EM, REM, and VW scale accordingly with screen size, they are responsive units.

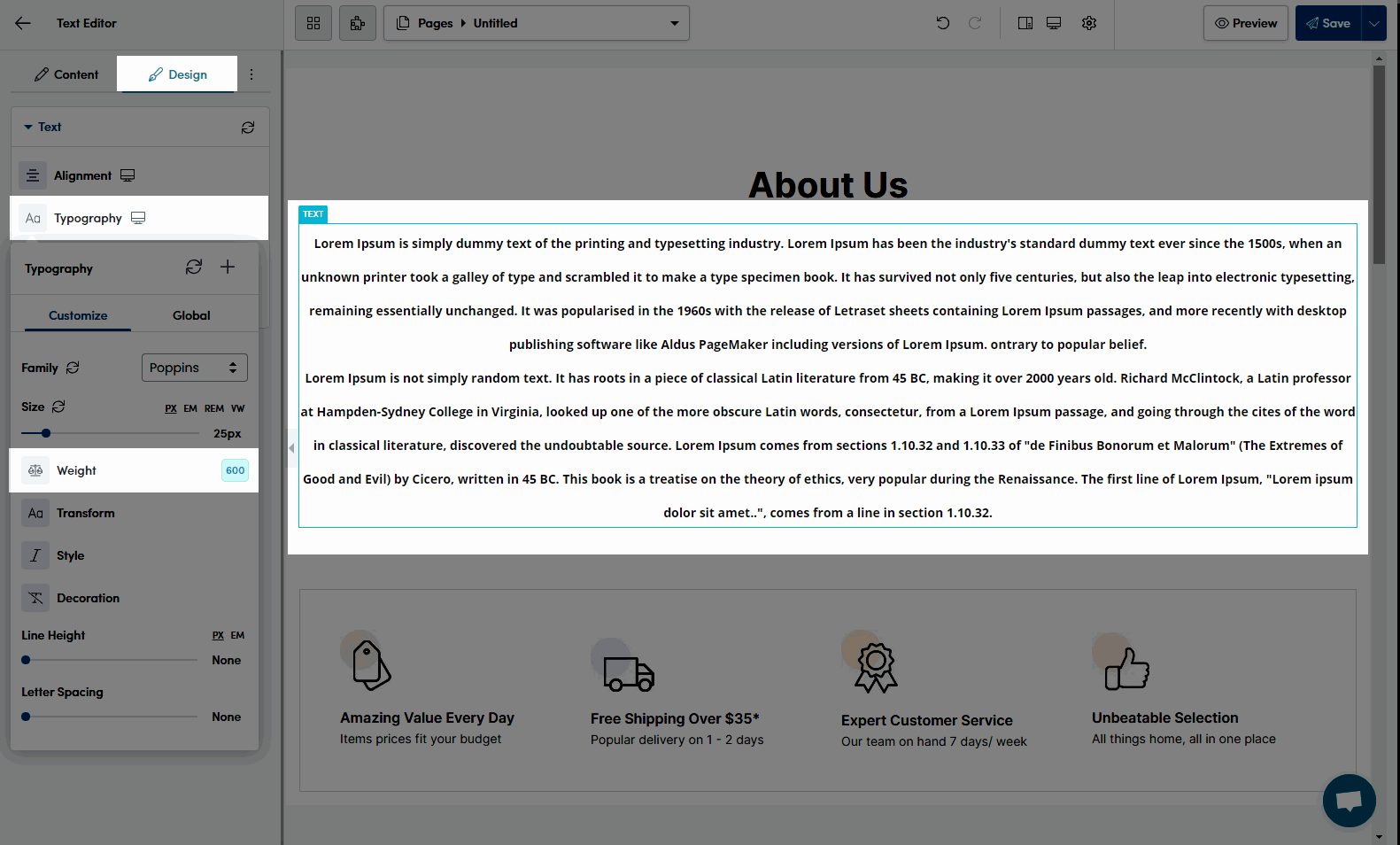

  • Weight: Controls the thick or thin characters in text that should be displayed.

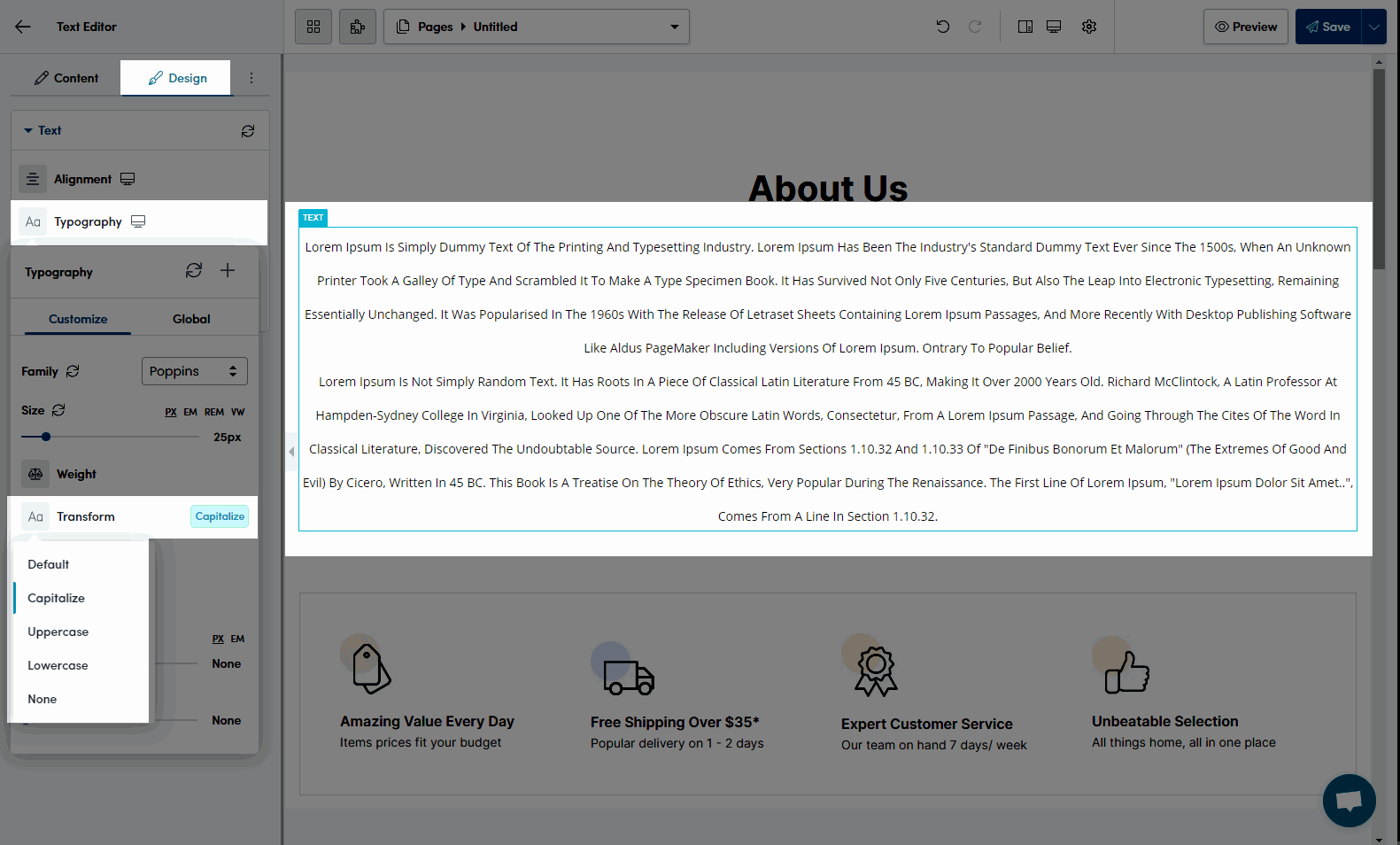

  • Transform: It can be used to make text appear in all-uppercase or all-lowercase, or with each word capitalized.

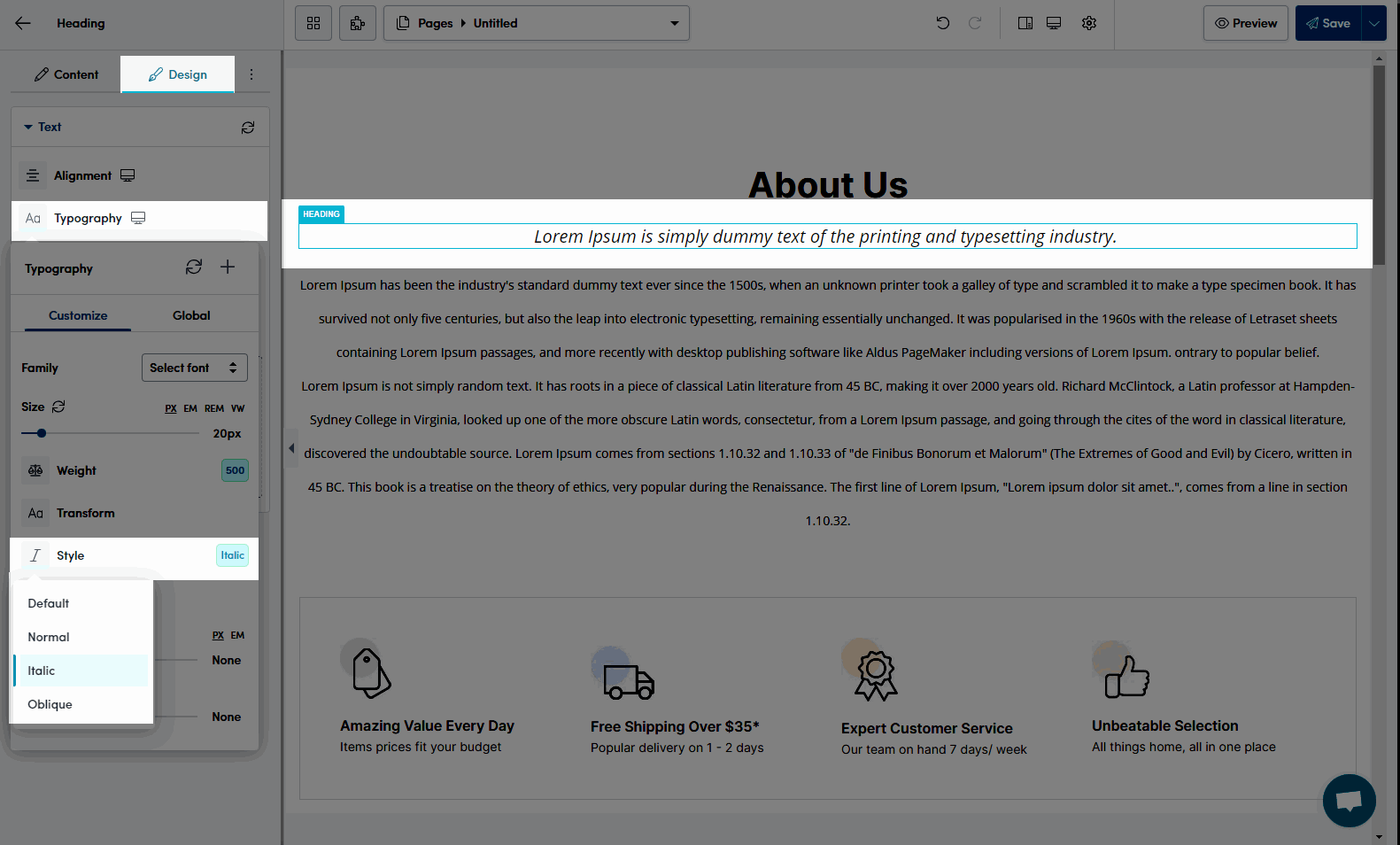

  • Style: Sets whether a font should be styled with a Normal, Italic, or Oblique face from its font family.

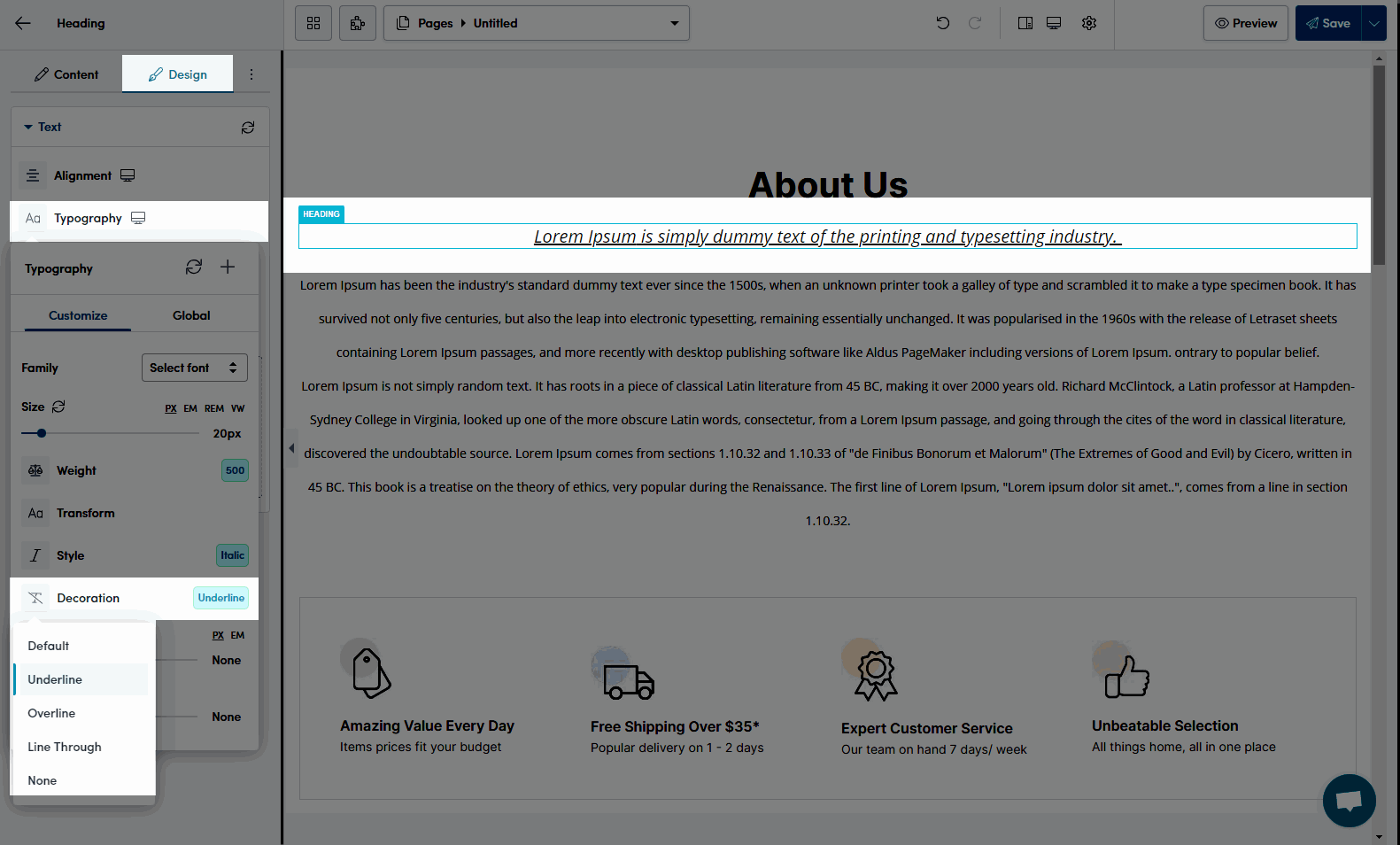

  • Decoration: Sets or removes decoration from the text.Line height: Sets the height of a line. It’s commonly used to set the distance between lines of text.
  • Letter spacing: This will increase/ decreases the space between characters in a text. You can fill in the data or use the drag bar to adjust.

Typography Global

  • Global: If you prefer to use the Global font, so you come to this option and pick the font that you would like to. Or you can click here to get more details about Global font.
  • Reset mark: If you prefer to use the theme’s font, simply click the Reset button to return everything to its default setting.
  • Plus mark: Clicking this will instantly allow you to add a new font to the Global font. (you can only see it when you are in the Font Customize setting)
  • Manage Global setting button: You can click here to go directly to the Global Font Setting Board when you wish to add more font designs to the Global font.

1.3. Text color

Specifies the color of text, you can put both HEX code or RGB code. By the way, you can set the Global color and then apply it to any text you want.

1.4. Text Gradient

In short, text gradients are a fun, useful way to create engaging designs and eye-catching features for your site. If you want to hop on the gradient-train and want something a little different than radial and linear gradient backgrounds, then gradient text might be the perfect choice for you!

1.5. Text shadow

This option allows you to add the shadow to text only.

  • Color: Set the color for the shadow.
  • Blur: Increase or decrease blur level.
  • Horizontal: Set the position of the horizontal shadow.
  • Vertical: Set the position of the vertical shadow.

1.5. Spacing

  • Padding: Create extra space inside of an element’s content. You can change for 4 sides: padding-top, padding-right, padding-bottom, and padding-left.
  • Margin: Create extra space outside of an element an element’s content. You can change for 4 sides: margin-top, margin-right, margin-bottom, and margin-left.
  • Synchronization button: The Link symbol of every option like below stands for synchronizing 4 values. If you disable it, you can set it one by one value separately.

1.6. Background

Specifies the background color of the whole element. You can use both HEX code and RGB code.

You can also use an image as an element’s background.

  • Image Size: The image size setting, controls the size of the background. Select the image size or enter a custom size.
  • Image fit: Few types of options like Fill, Contain, Cover and Scale down for you to choose.
  • Progressive JPGE: This option allows you to set a custom size for the image but keep the aspect ratio.
  • Position: Image position lets you choose which area of the image will get focused on, in cases where the image is larger in width or height than the section spacing.
  • Attachment: You can adjust the background attachment here. There are 4 types: Fixed, Scroll, Local, and Inherit.
  • Repeat: Choose the background repeat that you want to show for the Background image here. Example: Repeat, No-repeat, Vertically, etc…
  • Size: Choose the background size that you want to show for the Background image here. Example: Auto, Contain, Inherit, etc…

1.8. Border

Draw a line on 4 edges of the element to which it is applied.

  • Border Style: Default, None, Solid, Dashed, Dotted, Double, Groove.
  • Width: Define the width of the four borders (top border, right border, bottom border, and left border). Also, you can set all as 0 to leave the border invisible.
  • Color: Change the color of the border.

1.9. Border Radius

Border Radius: To control corner roundness. You need to set 4 values for 4 corners: top-left, top-right, bottom-right, and bottom-left.

1.10. Box shadow

Add shadow effects around an element’s frame.

  • Horizontal: Adjust the horizontal position of the shadow area.
  • Vertical: Adjust the vertical position of the shadow area.
  • Color: Set color for the shadow.
  • Spread and Blur: Increase or decrease blur level.
  • Position: You can set the box shadow outside or inset.

1.11. Hover tab

Hover property can be used on all elements, not only on links and button

  • Transition Duration: It allows you to change property values smoothly (from one value to another) when hovering.
  • Animation: When a website visitor hovers over an animated element like a link or button, for example, it can change color, grow, shrink, rotate, and more.

1.12. Width, Max-width, and Height

Scale up or down the width and height of an element, in pixels, %, VW. This prevents the value of the width property from becoming larger than the max-width. The value of the max-width property overrides the width property.

  • The width/ height of an element does not include padding, borders, or margins.
  • The max-width property defines the maximum width of an element.
  • If the content is larger than the maximum width, it will automatically change the height of the element.
  • If the content is smaller than the maximum width, the max-width property has no effect.

1.13. Opacity

The opacity: The transparency level, where 1 is not transparent at all, 0.5 is 50% see-through, and 0 is completely transparent.

1.14. CSS Filter

Filters are commonly used to adjust the rendering of images, backgrounds, and borders.

  • Blur: How many pixels on the screen blend into each other, so a larger value will create more blur.
  • Brightness: Applies a linear multiplier to the input image, making it appear more or less bright
  • Contrast: Adjusts the contrast of the image.
  • Saturation: Saturates the image.
  • Hue: This applies a hue rotation on the image.

Before:

After:

2. Advanced Tab

Admins: Every Basic element always has this tab. The settings here take effect on the whole element.

2.1. Advanced

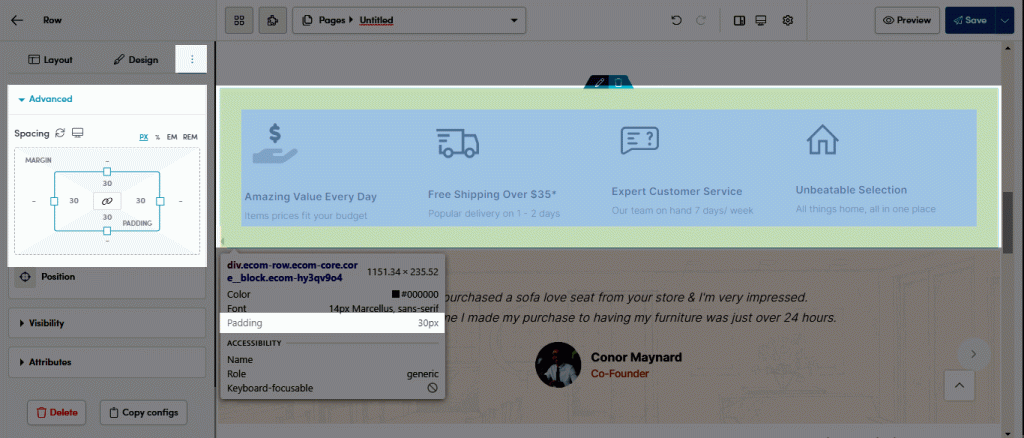

Spacing: You can click on “Size units” to get more details about properties. Also, you can use default metrics or fill in the data in the box to adjust.

Position: This option allows you to select absolute or fixed positioning for your element. If using the absolute or fixed positioning, you may manually enter the numeric X and Y positions in the Horizontal and Vertical Offset scales.

  • Default Position: The element is in its natural state, positioned merely by the natural flow of the page. This is the default position of all elements.
  • Relative Position: This is very similar to static positioning, except that once the positioned element has taken its place in the normal flow, you can then modify its final position, including making it overlap other elements on the page.
  • Absolute Position: The element is positioned absolutely to its first positioned parent.
  • Fixed Position: Set your widget to have a fixed position and place it in a custom position. The element will stay fixed in that position as the page is scrolled. The element is positioned relative to the user’s viewport.

Vertical Align: Only available if Full Width (100%), Inline (auto), or Custom is chosen. Select to display the element on the Start, Center, or End.

Horizontal Orientation: Sets the horizontal reference point for the absolute positioning, with choices of either Left or Right.

Offset Right: Changes the horizontal reference point by the amount of the offset right.

Vertical Orientation: Sets the vertical reference point for the absolute positioning, with choices of either Top or Bottom.

Z-index: Set the Z-Index. Learn more about Z-Index.

Transform: The transform property applies a 2D or 3D transformation to an element. This property allows you to rotate, scale, move, skew, etc., elements.

Transform Origin: The transform-origin property allows you to change the position of transformed elements. 2D transformations can change the x- and y-axis of an element. 3D transformations can also change the z-axis of an element.

2.2. Background

You can always use this Background property to change the background color of the whole element.

2.3. Visibility

In this tab, you can choose to Show or Hide your element on Desktop, Tablet, or Mobile.

2.4. Scrolling Animation

Here you can set the animation for the element.

Horizontal position, Vertical position, Rotate, Opacity, Scale, Blur: These are all the options you can use for the scrolling animation, you can check the setting for each of these down below.

  • Start: Value at the start position.
  • Middle: The middle value between the start and end.
  • End: Value at the end position
  • Start from: Start position of the animation in vertical, the value is calculated by the % of the screen.
  • End from: The end position of the animation in vertical, the value is calculated by the % of the screen.

Animation Duration: The duration of the animation.
Timing function: These are used to smooth out the animation, for example the transition will go from slow to fast for ease in.

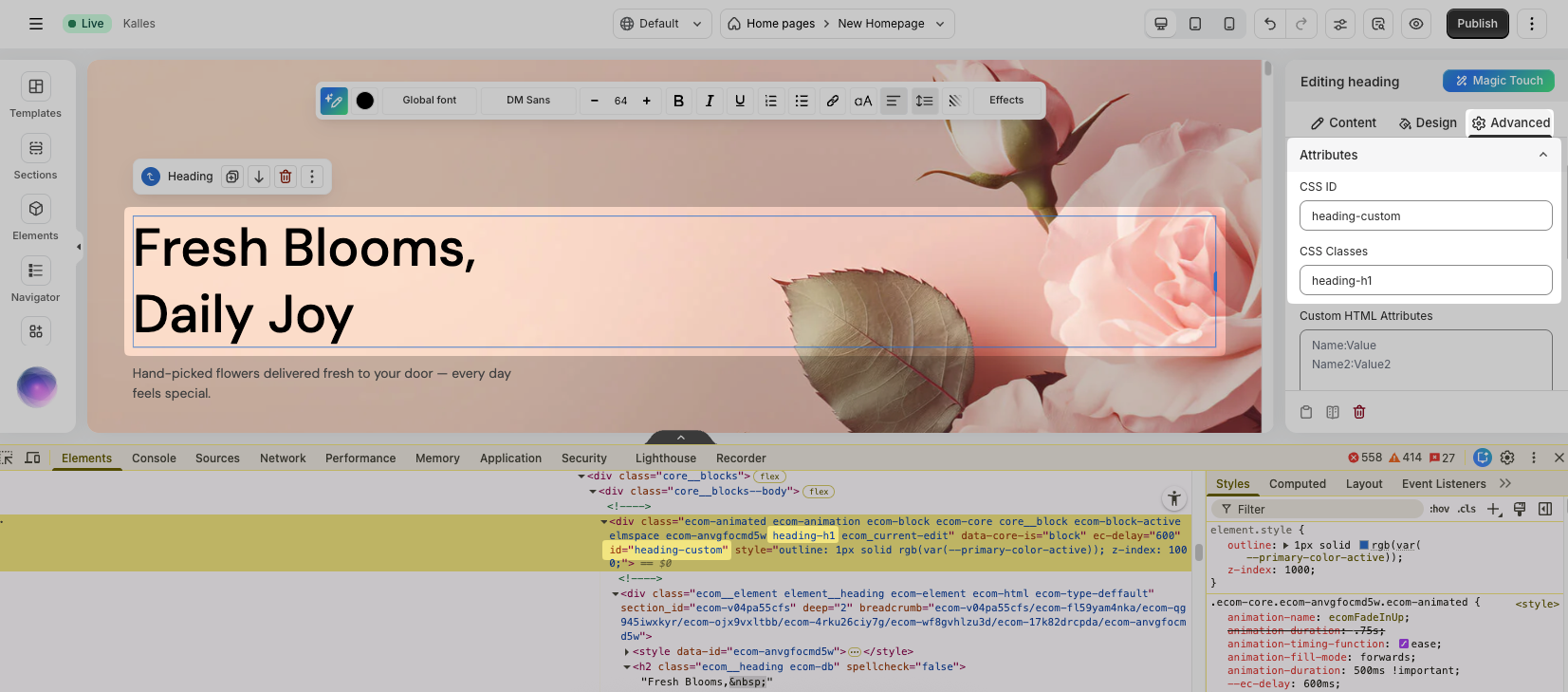

2.5. Attributes

HTML and CSS box: If you want to add your own coding for individual elements, use the Additional CSS and HTML box here.
No matter what style you choose, you can tweak CSS, and HTML and overwrite that style.

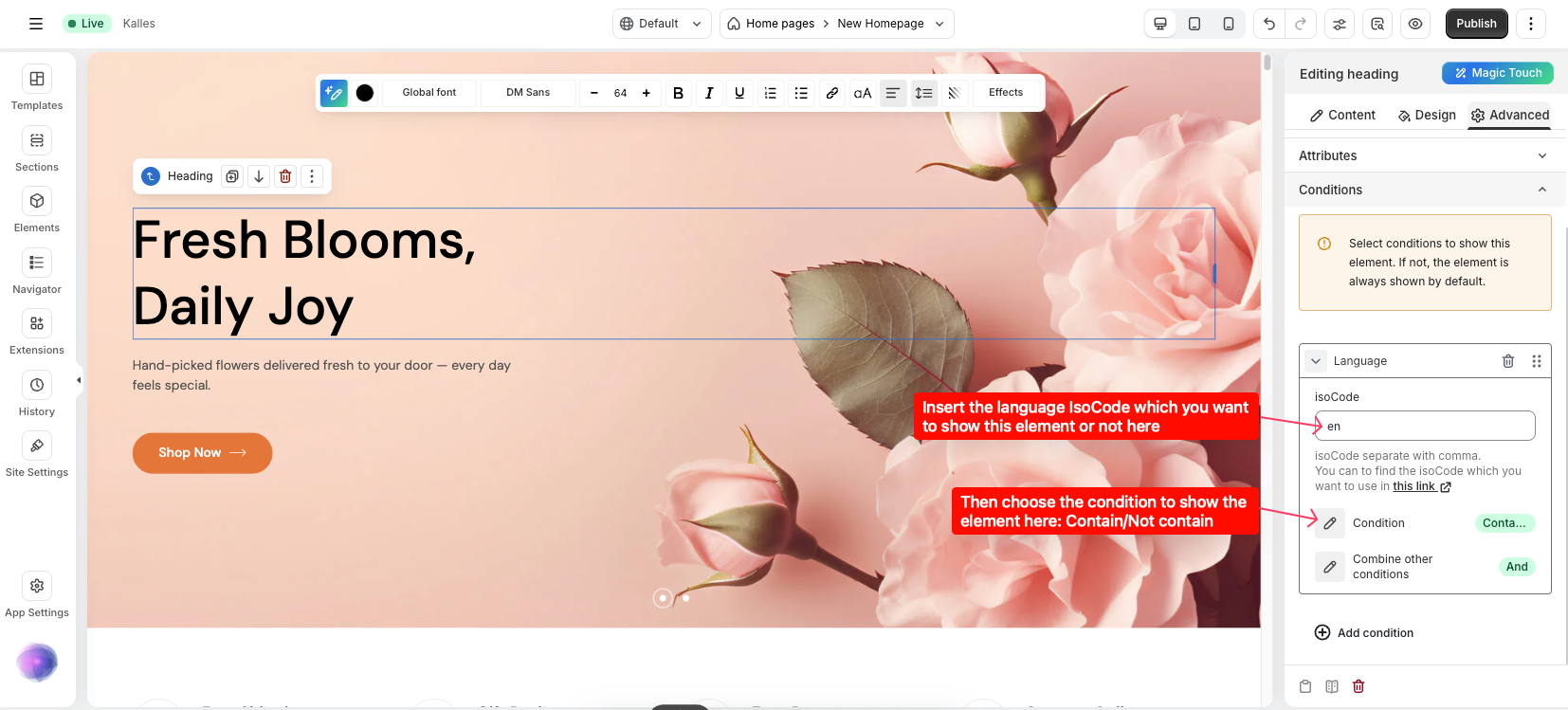

2.6. Conditions

This allows you to display or hide the elements on a page depending on set conditions.

Each page type has different conditions set. For example:

  • Home page/Standard page/Collection list/Password-Coming soon: Users, User tags, and Metafield.
  • Product template: Users, User tags, Current page, Product Vendor, Product Type, Metafield.
  • Cart page: Users, User tags, Cart page, and Metafield.
  • Collection template/Blog post/Blog list: Users, User tags, Current Page, and Metafield.

Here’s the specifics of what each condition does:

  • Users: You can choose the condition to show the element as a Guest or only when they’re Logged in.
  • User tags: Also known as customer tags, you can separate the tags by a comma for example tag1,tag2,…
  • Current page: Use current page tags as conditions only work on blog lists, blog posts, collections, and product pages.
  • Product vendor: Use the product vendor as conditions, for example, vendor1, vendor2,… only work on product pages.
  • Product type: Use the product type as conditions, for example, type1, type2,… only work on product pages.
  • Metafield: Use metafield as a condition, you can fill in the metafield value or not based on whether the metafield value is set to empty or not.

Please check the video below for more details on how the conditions work (specifically the metafield condition).

You can view detailed guide of using EComposer element condition function here:
