How to Set up Sizechart Metafield in Sizechart element

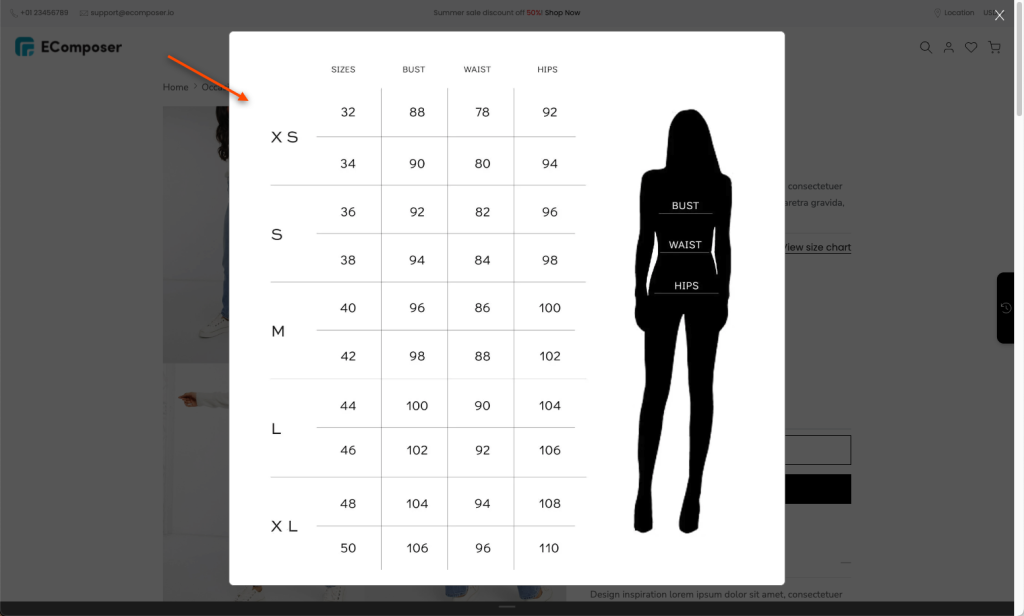

By default, the Sizechart image will display the same for all products. But you can create a dynamic size chart for your products using Shopify metafields. This allows you to use one product template for multiple products while displaying different size charts for each product.
Notes:

• Using metafields allows flexibility – you don’t need a separate template for each product.
• Customers can see the relevant size chart automatically.

You can follow the following steps to do that.

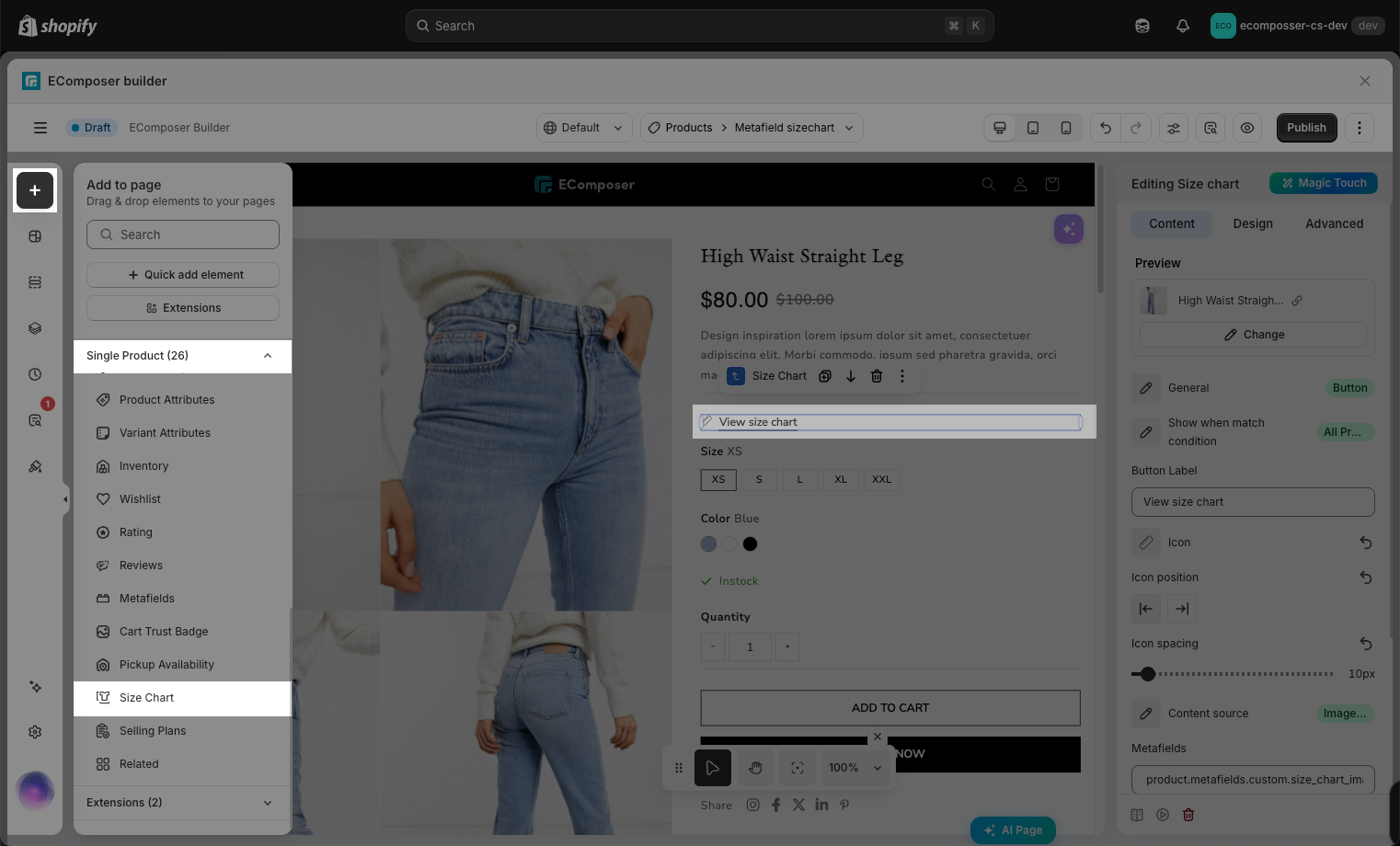

Step 1: Adding a Sizechart element from the left sidebar

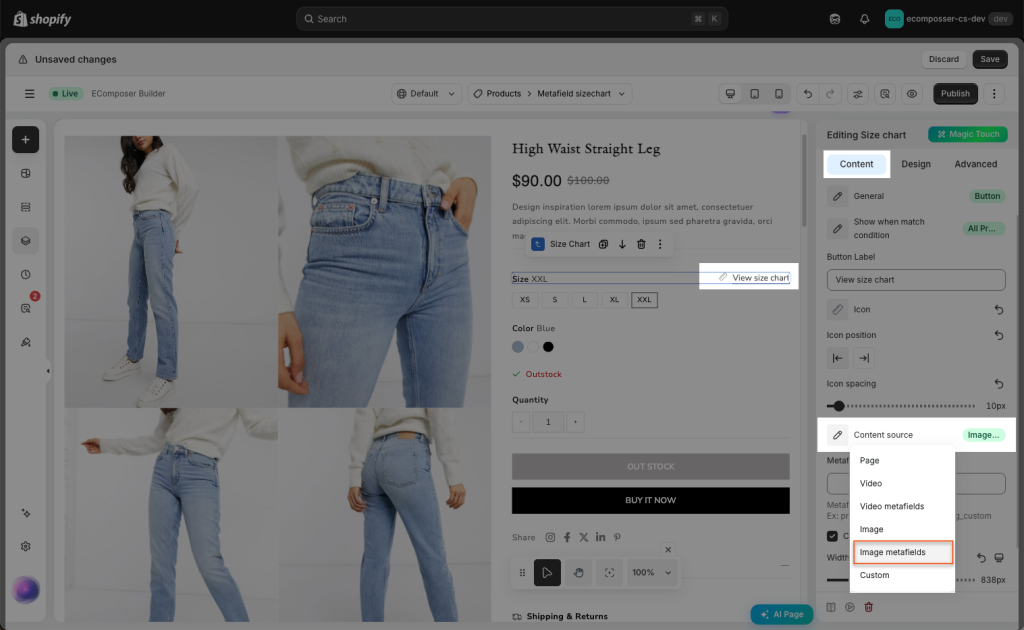

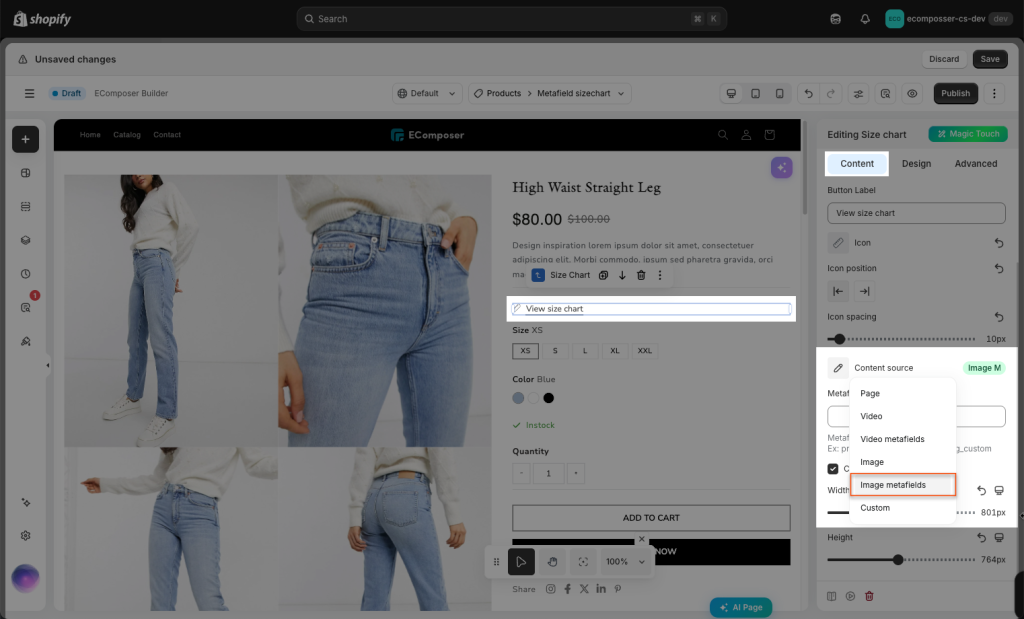

Step 2: Click Sizechart -> Content Source -> choose Image metafield in the dropdown.

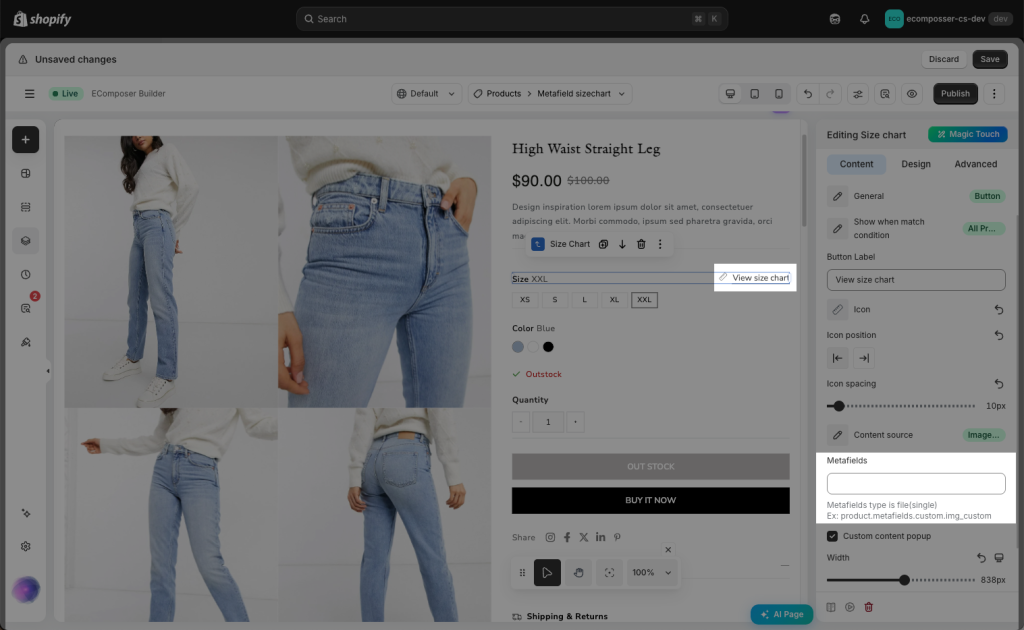

Step 3: Now, you need to fill in the Metafield value to the box.

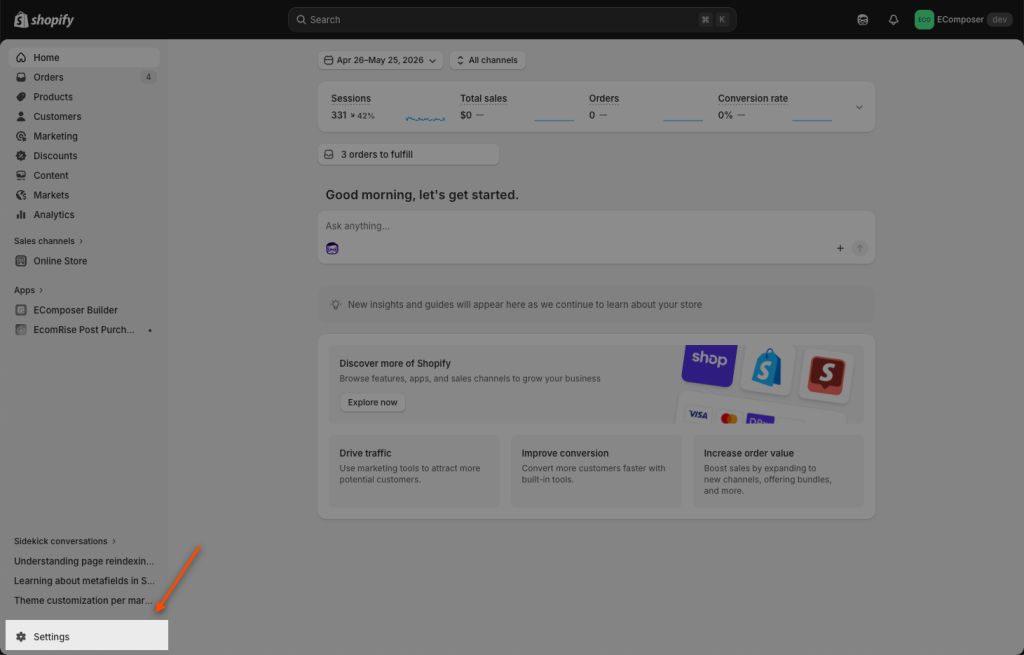

Step 4: Go to Shopify Admin -> Settings

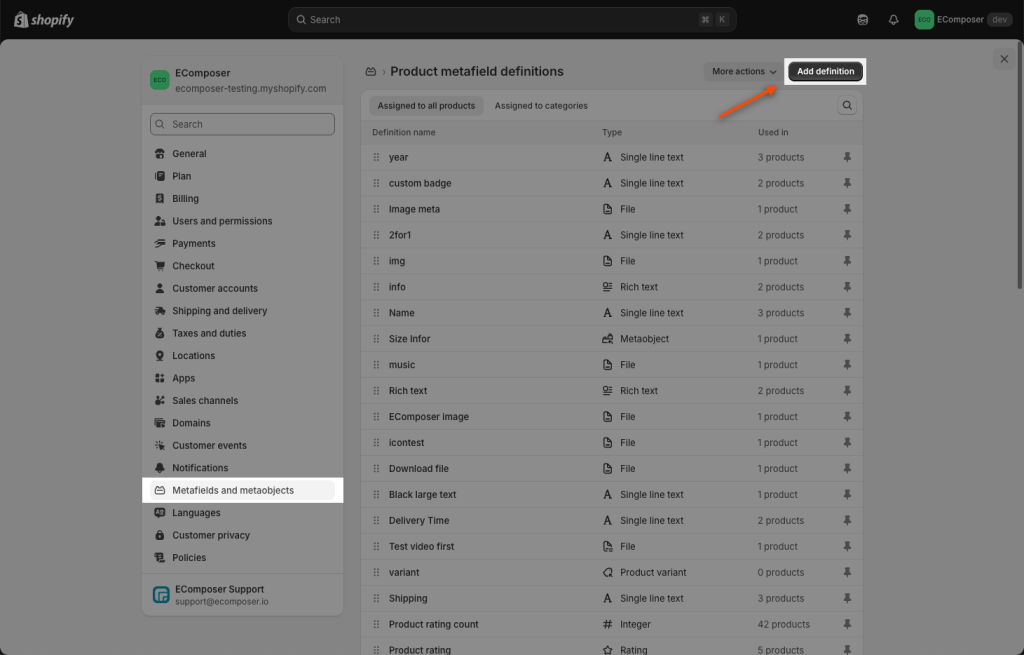

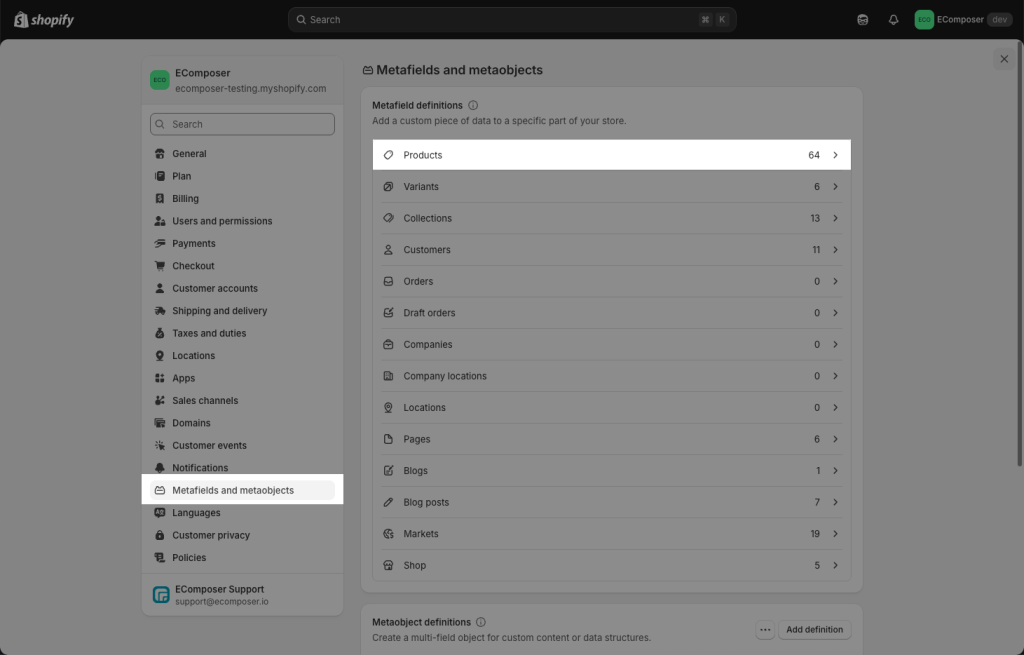

Click Metafields and metaobjects -> Products

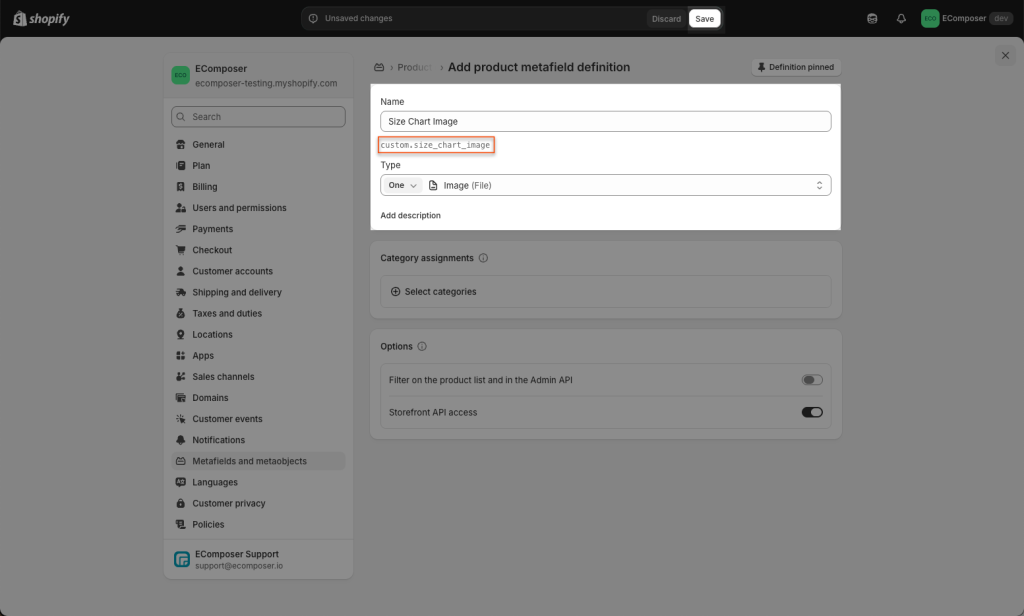

Step 5: Then Add definition

Put a name for this new metafield -> choose type Image (file) then copy the metafield code:

custom.size_chart_image

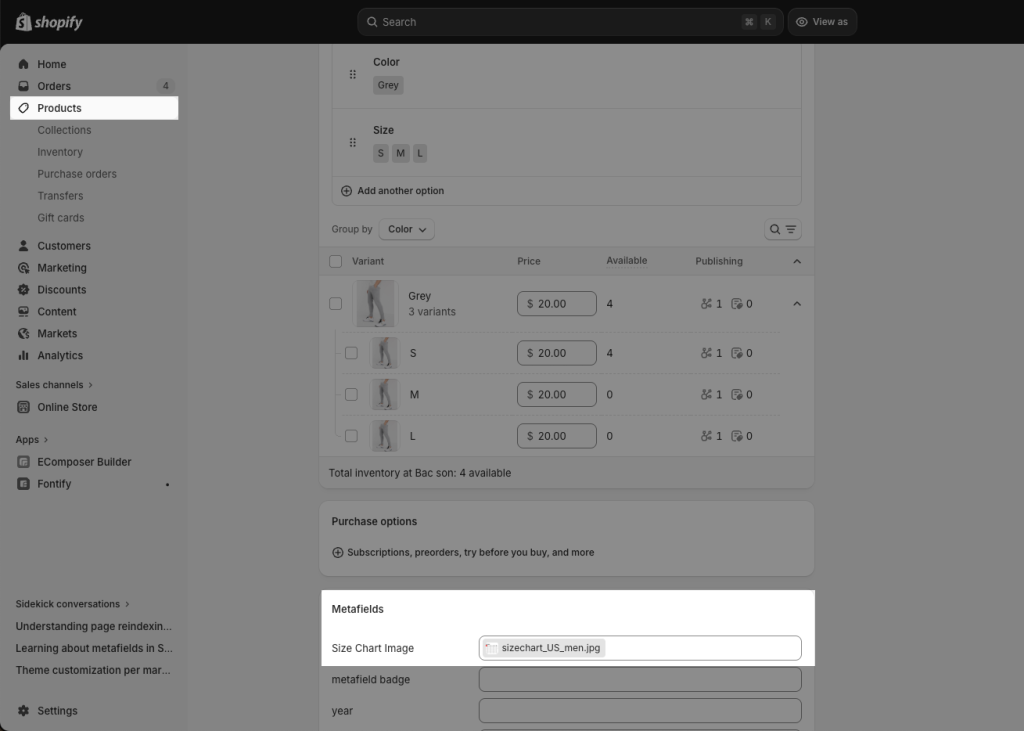

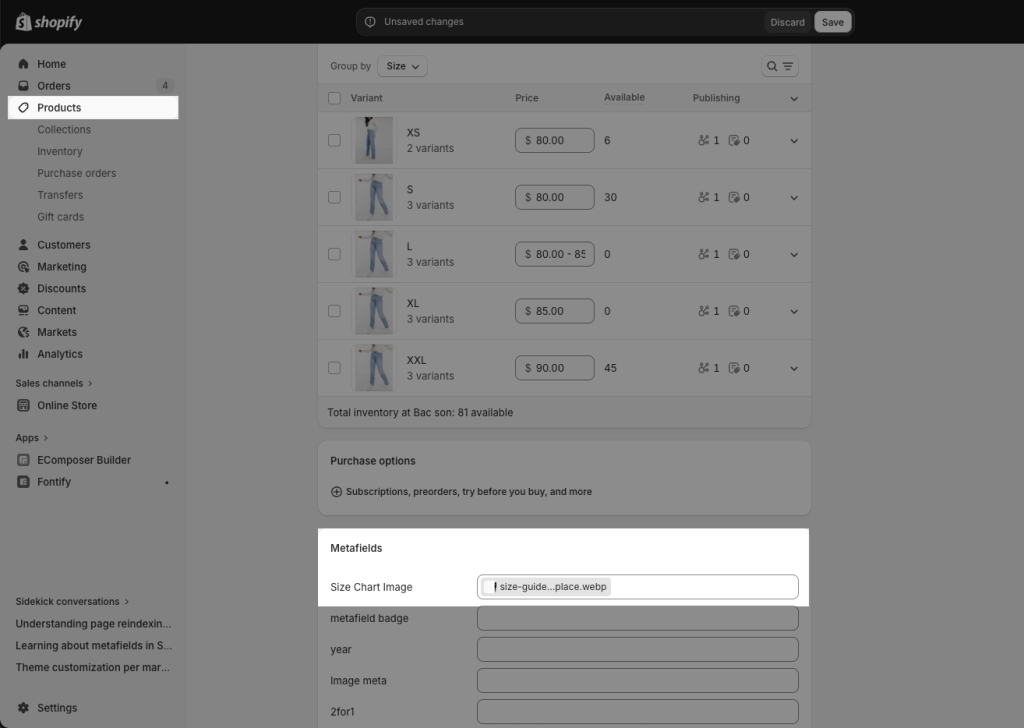

Step 6: Navigate to Products -> Edit a specific product -> Uploading an image of sizechart ( png, jpg, webp,..)

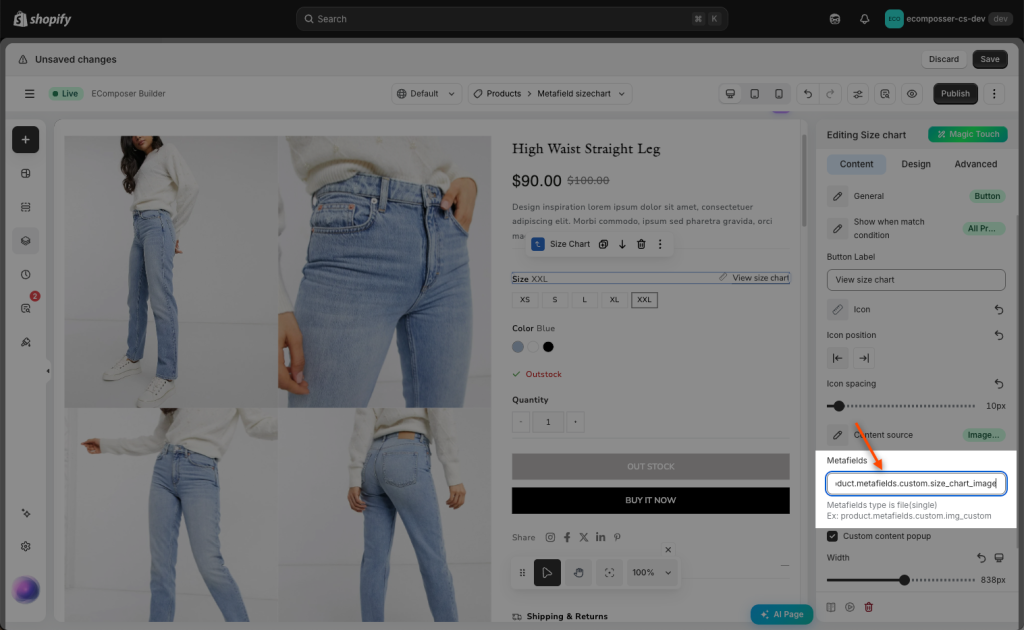

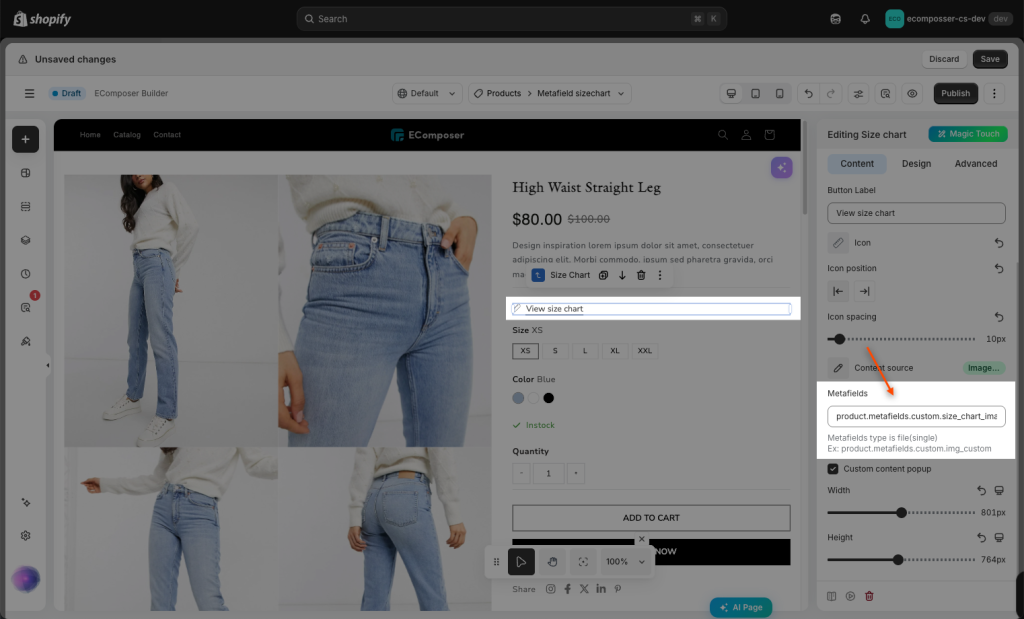

Step 7: Finally, go back to the App Editor -> fill in the metafield value in the box. The final code should be:

product.metafields.custom.size_chart_image

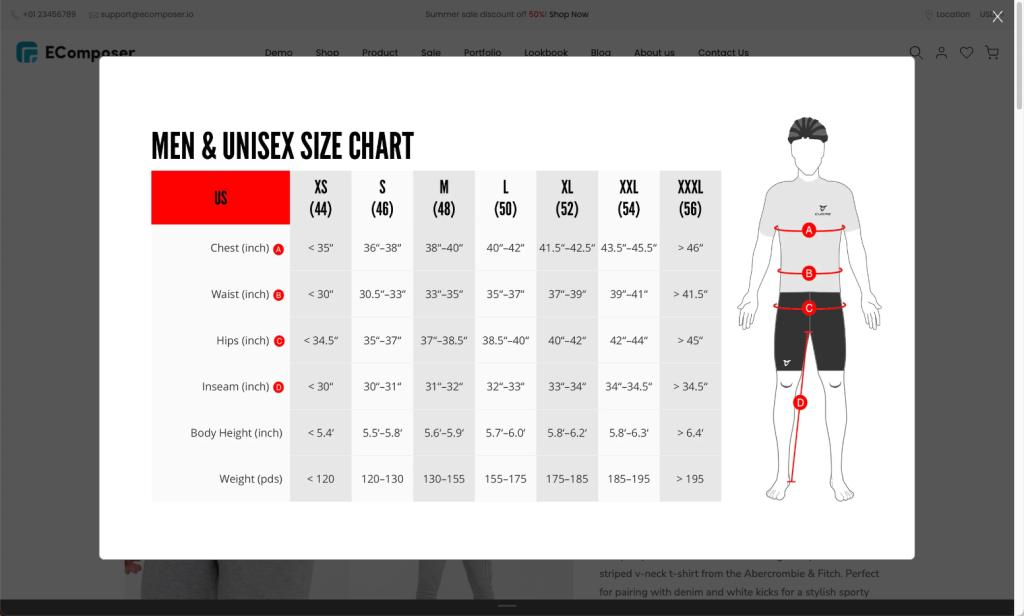

As a result, the Sizechart image is showing up when you click to Sizechart button on the product single page.

Repeat Step 4 to add more different sizechart images to other products.

If you can’t follow the steps above, please check this video:
